EQUIPMENT
PLATFORM AND TILT PLATFORM

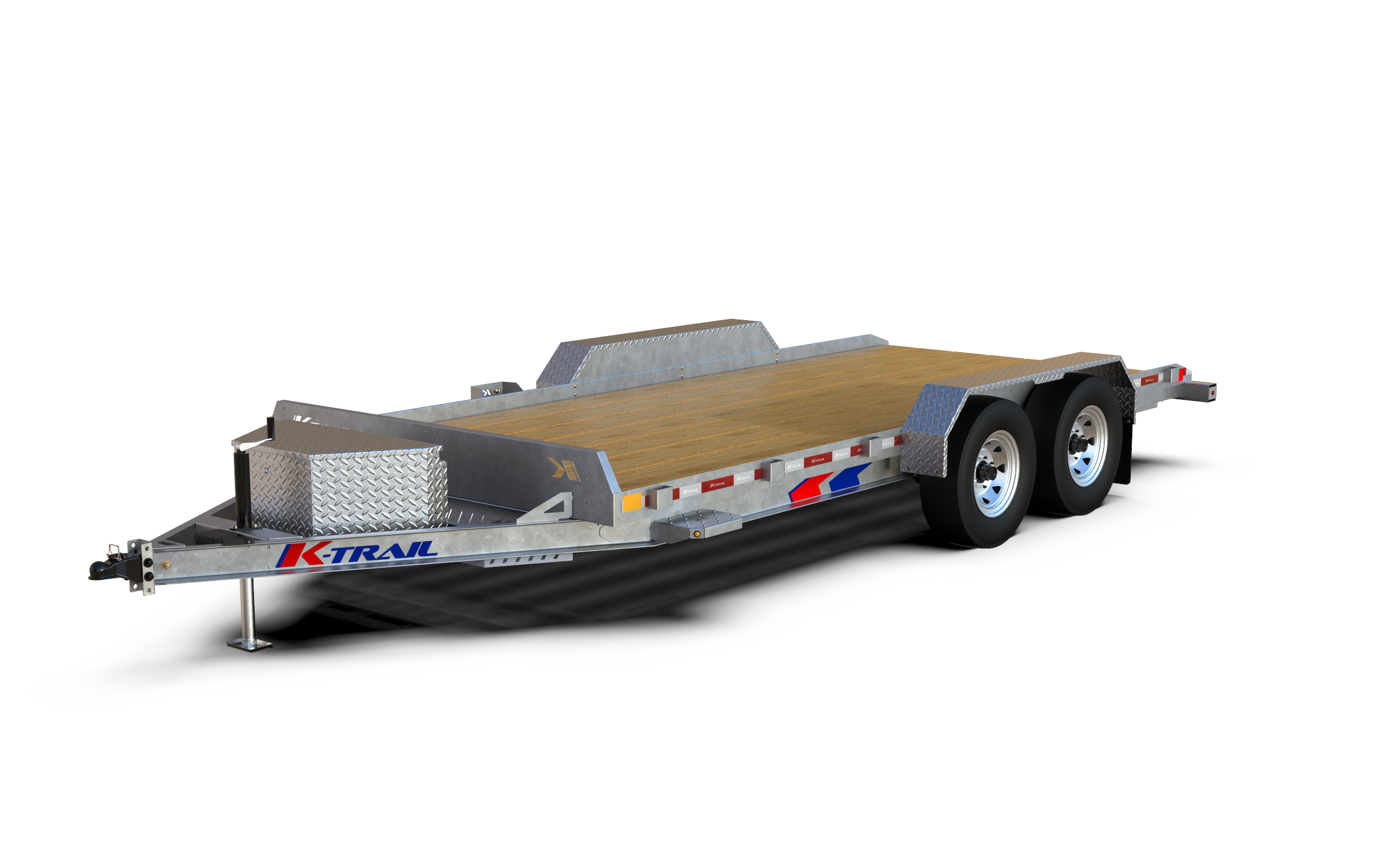

The ideal trailer for transporting your equipment. Our models are available in 18- and 20-foot lengths and two load capacities. Simply pick the one that works best for you.
See details of our E Series
THE ESSENCE OF OUR E Series
May vary according to model. Consult technical data sheet for details.
SimpleSingle
TandemTandem
GalvaniséGalvanised
BasculanteDump
Our model E Series
| Model | INTERIOR (length x width) | TOTAL (length x width) | Payload | Trailer Weight | Axles |
|---|---|---|---|---|---|
| CH20-10 | 237'' x 80'' | 295'' x 101'' | 7,000 lbs. | 2,500 lbs. | 5,200 lbs. |
| CH20-14 | 237'' x 80'' | 295'' x 101'' | 11,000 lbs. | 2,500 lbs. | 7,000 lbs. |
| TI7812-S7 | 144'' x 78'' | 201'' x 102'' | 5,000 lbs. | 2,152 lbs. | Gravity |
| TI8020 | 240'' x 80'' | 303'' x 102'' | 7,000 lbs. | 3,250 lbs. | 5,200 lbs. |
| TI8020-10 | 240'' x 80'' | 303'' x 102'' | 7,000 lbs. | 3,250 lbs. | 5,200 lbs. |
| TI8020-14 | 240'' x 80'' | 303'' x 102'' | 10,000 lbs. | 3,250 lbs. | 7,000 lbs. |
| TI8216-4 | 240'' x 82'' | 289'' x 102'' | 10,000 lbs. | 3,500 lbs. | 7,000 lbs. |
| TI8216-4-14 | 240'' x 82'' | 289'' x 102'' | 10,000 lbs. | 3,500 lbs. | 7,000 lbs. |
CH20-10
(length x width):
237'' x 80''
(length x width):
295'' x 101''
7,000 lbs.
2,500 lbs.
5,200 lbs.
CH20-14
(length x width):
237'' x 80''
(length x width):
295'' x 101''
11,000 lbs.
2,500 lbs.
7,000 lbs.
TI7812-S7
(length x width):
144'' x 78''
(length x width):
201'' x 102''
5,000 lbs.
2,152 lbs.
Gravity
TI8020
(length x width):
240'' x 80''
(length x width):
303'' x 102''
7,000 lbs.
3,250 lbs.
5,200 lbs.
TI8020-10
(length x width):
240'' x 80''
(length x width):
303'' x 102''
7,000 lbs.
3,250 lbs.
5,200 lbs.
TI8020-14
(length x width):
240'' x 80''
(length x width):
303'' x 102''
10,000 lbs.
3,250 lbs.
7,000 lbs.
TI8216-4
(length x width):
240'' x 82''
(length x width):
289'' x 102''
10,000 lbs.
3,500 lbs.
7,000 lbs.
TI8216-4-14
(length x width):
240'' x 82''
(length x width):
289'' x 102''
10,000 lbs.
3,500 lbs.
7,000 lbs.
Feature
SEE DETAILS
- 6 to 8 welded D-rings
- Welded footboard
- 2'' slipper spring suspension
- 12,000-lbs. jack (14,000-lbs. model)
- 7,000 lbs. jack (10,000 lbs. model)
- Steel diamond plate fenders
- Side pocket with flat bar
- And much more. Consult the product sheets.
HARNESS
SEE DETAILS
- LED lights
- Cold-resistant harness
- Closed light boxes
FRAME
SEE DETAILS
- 2'' x 4'' x 3/16'' tubing frame
- 2" x 5" x 3/16" tubing frame
- C6 x 8.2 tubing frame
- 2'' x 2'' x 3/16'' crossmember every 16''
- C3 crossmember every 16" C/C
- 2'' x 5'' x 3/16'' tube poles
